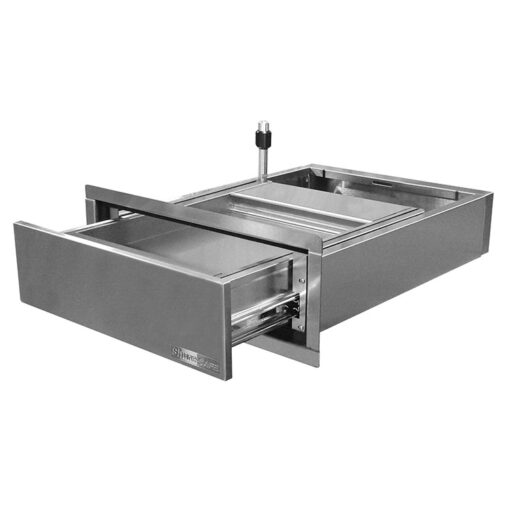

Thru-Wall Transaction Drawer #SPT150

Model #SPT150 – Thru-Wall Transaction Drawer

  • Overall Size – 18”W x 25”D x 5”H
  • Frame Face – 21 3/8”W x 8”H
  • Transfer Area – 13 3/4”W x 20”D x 4 1/8”H
  • Wall Opening – 19 5/8”W x 6 1/4”H
  • Weight – Approx. 60 lbs.

SKU: SPT150 Categories: ,

Description

T-Wall Series Drawers are an ideal solution for pharmacies, convenience stores, correctional facilities, law enforcement, financial facilities, fast food Restaurants and government facilities.

Features:

  • Economical Security Solution For Cashier And Ticket Windows, Administrative, Retail And Convenience Store Environments,
  • Outdoor Payment Kiosks And Other Point-Of-Sale Contacts
  • Suitable For Walk-Up / Drive-Thru Applications In Interior And Exterior Environments
  • Designed With An Extending Tray Housing For Installation Through Walls, In Counter Tops With A Window Above, In Kiosks Or Through Other Window Arrangements
  • Full-Length Removable Deal Tray For Document, Cash, Credit And Smaller Transactions
  • Removing The Deal Tray Allows For Large Items To Be Transferred Through The Drawer
  • Designed For Installation In Up To 8” Thick Walls
  • UL® Level 3 Bullet Resistant Faceplate Insert

T-Wall Series Cut Sheet

T-Wall Series Assembly Instructions
